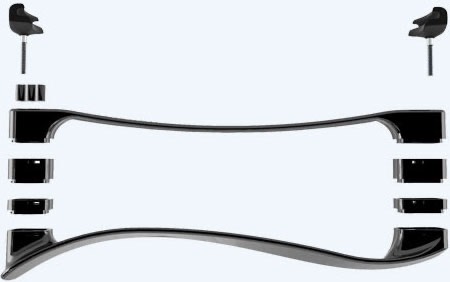

LINND "LAXO" Violin Shoulder Rest Parts Diagram
This exploded parts diagram shows you the way that the LINND LAXO fits together and the position of the insert spacers that are used to adjust the overall height of the rest. The unique LINND "Figure 8" insert that adjusts the distance between the feet can be seen in the upper left of the diagram.

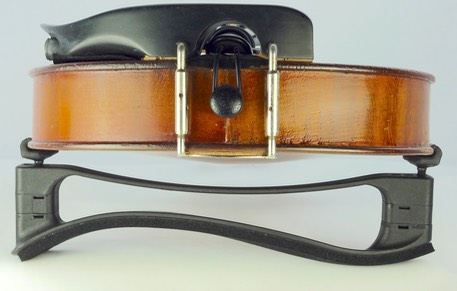

A LINND LAXO fitted with 10mm inserts fitted to a 19thC violin

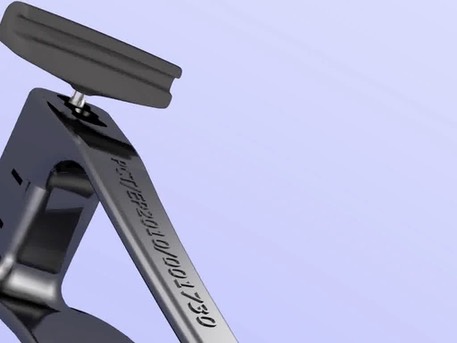

LINND "LAXO” Violin Shoulder Rest Adjustment
This short animation demonstrates the fitting together of the LINND LAXO and shows how inserts are used to adjust the overall height of the rest. The way that the fine adjustment of the spacing between the feet is carried out via the unique LINND "Figure 8" insert is also demonstrated.
